The electrolyzer consists of many cells.Each cell consists of cathode pool,which are separated by the membrane.The electrolyte will circle through cathode pool and anode pool with circle pump. Cells are connected by conductors.or coppers. The electrolyte and membrane will conduct between cathode pool and anode with series mode.Oxidation will happen at the anode with oxidation products and deoxidation will happen at the cathode with deoxidation products.

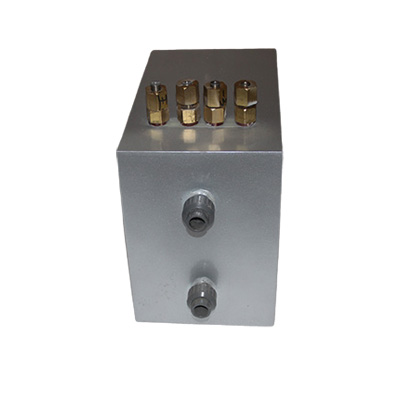

Qinhuang is professional manufacture for electrolytic cell. We have 2 types hot cell Electrolyzer for alkaline water industrial application.
Type:16-1/30-1
Plates: ≥30pcs
Shell Materials: SS316
Electrode: MMO Coated gr1 titanium plate
Dimensions: 295 * 155 x 115mm / 300 x 155 x 170 mm
Water outlet index: pH > 8.5
Water capacity: 1000L/h / 2000L/h
Power range: 0~700W
Power factor: 0.85
Input current: 0~30 A
Input voltage: DC, 0~36V
Outlet pipe: DN1/2
Inlet pipe: DN1/2
Type:50-1 / 100-1
Plates: ≥30pcs
Shell Materials: SS316
Electrode: MMO Coated gr1 titanium plate
Dimensions：350×210×160 mm /350×210×300 mm
Water outlet index：pH 7.5-8.5
Water capacity：3000L/h / 4000L/h
Power range：0~1500W / 0~3000W
Power factor：≧0.85
Input current：0~30A / 0~80A
Input voltage：DC，0~36V
Outlet pip：DN3/4 / 1. 2′
Inlet pipe：DN1/2 / 1′
