The electrolyzer consists of many cells.Each cell consists of cathode pool,which are separated by the membrane.The electrolyte will circle through cathode pool and anode pool with circle pump. Cells are connected by conductors.or coppers. The electrolyte and membrane will conduct between cathode pool and anode with series mode.Oxidation will happen at the anode with oxidation products and deoxidation will happen at the cathode with deoxidation products

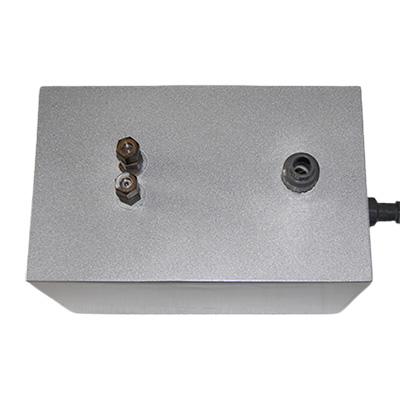

Qinhuang is professional manufacture for electrolytic cell. We have 2 types hot cell Electrolyzer for acid water industrial application
| Type 16-1/30-1 Plates: ≥30pcs Shell Materials: SS316 Electrode: MMO Coated gr1 titanium plate Dimensions: 295 * 155 x 115mm / 300 x 155 x 170 mm Water outlet index: pH ≤ 2.7 Water capacity: 1000L/h / 2000L/h Power range: 0~700W Power factor: 0.85 Input current: 0~30 A Input voltage: DC, 0~36V Outlet pipe: DN1/2 Inlet pipe: DN1/2 |
Type 50-1 / 100-1 Plates: ≥30pcs Shell Materials: SS316 Electrode: MMO Coated gr1 titanium plate |  |
