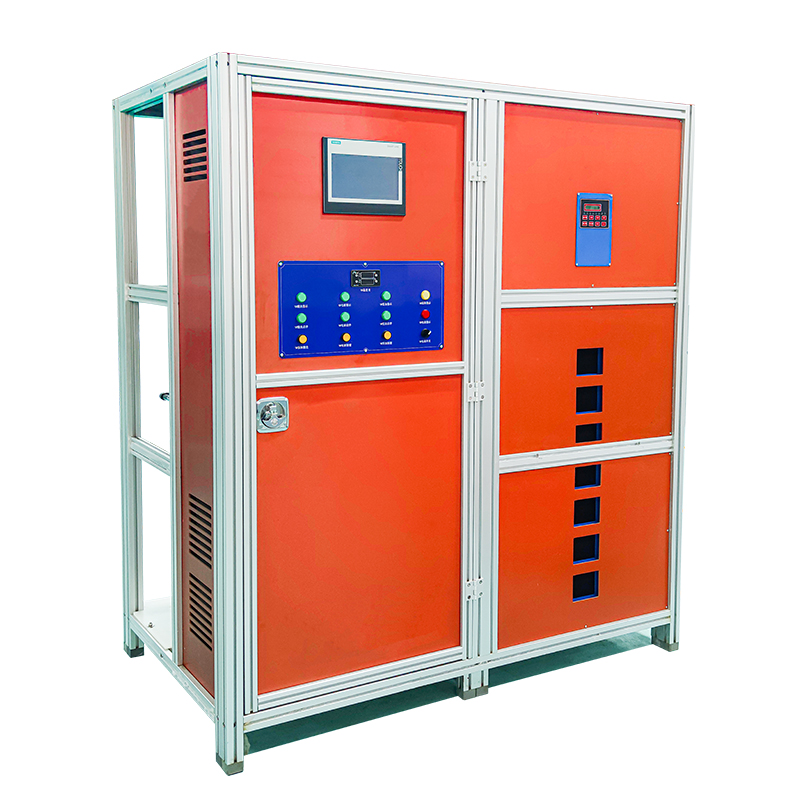

NaOCl series sodium hypochlorite generator is an equipment for producing sodium hypochlorite disinfection solution by electrolysis method without membrane.
It generates sodium hypochlorite solution by electrolyzing dilute brine. The system is automatically controlled by PLC and fully automatic operation, including salt dissolution device, filtration Device, proportioning device, electrolysis electrode assembly, rectifier electrolysis power supply, automatic control system, sodium hypochlorite finished product storage tank, sodium hypochlorite solution automatic dosing device, online testing instrument and other components. The brine has precise pretreatment without chemicals during the electrolysis process, so the resulting solution is a pure sodium hypochlorite solution. Sodium hypochlorite solution has strong oxidizing properties, strong sterilization and algae killing ability, and is the most widely used disinfectant. The only raw material for a sodium hypochlorite generator is salt. The disinfectant produced is a low-concentration liquid sodium hypochlorite disinfectant, which does not have the hazard of dangerous chemicals of gas disinfectant, so its raw materials and finished products are highly safe.
All equipment components of the system, including host, tank, pump, control cabinet, water softener, pipes, cables, etc., need to be installed and connected on site. The area of the system shall be determined according to the equipment specifications.
Chemical equation
NaCL+H2O=NaCLO+H2↑
（Sodium hypochlorite）
NaCLO + H2O ＝ HCLO + NaOH
（Decomposition into hypochlorous acid ）
（The new ecological oxygen precipitation ）
HCLO → HCL + [O]
Composed of automatic sodium hypochlorite generator system
Nano-scale coating technology has huge advantages in terms of electrode life, salt consumption, and power consumption, ensuring long-life use and low energy consumption of the non-membrane electrolytic sodium hypochlorite generator.
<template class="visibility">
NaOCl series sodium hypochlorite generator is an equipment for producing sodium hypochlorite disinfection solution by electrolysis method without membrane.
It generates sodium hypochlorite solution by electrolyzing dilute brine. The system is automatically controlled by PLC and fully automatic operation, including salt dissolution device, filtration Device, proportioning device, electrolysis electrode assembly, rectifier electrolysis power supply, automatic control system, sodium hypochlorite finished product storage tank, sodium hypochlorite solution automatic dosing device, online testing instrument and other components. The brine has precise pretreatment without chemicals during the electrolysis process, so the resulting solution is a pure sodium hypochlorite solution. Sodium hypochlorite solution has strong oxidizing properties, strong sterilization and algae killing ability, and is the most widely used disinfectant. The only raw material for a sodium hypochlorite generator is salt. The disinfectant produced is a low-concentration liquid sodium hypochlorite disinfectant, which does not have the hazard of dangerous chemicals of gas disinfectant, so its raw materials and finished products are highly safe.
All equipment components of the system, including host, tank, pump, control cabinet, water softener, pipes, cables, etc., need to be installed and connected on site. The area of the system shall be determined according to the equipment specifications.
Chemical equation
NaCL+H2O=NaCLO+H2↑
（Sodium hypochlorite）
NaCLO + H2O ＝ HCLO + NaOH
（Decomposition into hypochlorous acid ）
（The new ecological oxygen precipitation ）
HCLO → HCL + [O]
Composed of automatic sodium hypochlorite generator system
Nano-scale coating technology has huge advantages in terms of electrode life, salt consumption, and power consumption, ensuring long-life use and low energy consumption of the non-membrane electrolytic sodium hypochlorite generator.
</template>
PMMA transparent electrolytic cell (the cell is made of acrylic material)
Product Paramenters
Specification
Model
Available
Chlorine
Available Chlorine
Concentrationy
Rated
Power
Liquid
Capacity
QH-500-NaOCl
500g/hr
8000±10%mg/L
6KW
62.5L/hr
QH-600-NaOCl
600g/hr
8000±10%mg/L
6KW
75L/hr
QH-800-NaOCl
800g/hr
8000±10%mg/L
10KW
100L/hr
QH-1.0K-NaOCl
1000g/hr
8000±10%mg/L
10KW
125L/hr
QH-1.2K-NaOCl
1200g/hr
8000±10%mg/L
10KW
150L/hr
QH-1.5K-NaOCl
1500g/hr
8000±10%mg/L
15KW
187.5L/hr
QH-1.8K-NaOCl
1800g/hr
8000±10%mg/L
15KW
225L/hr
QH-2.0K-NaOCl
2000g/hr
8000±10%mg/L
15KW
250L/hr
QH-2.5K-NaOCl
2500g/hr
8000±10%mg/L
25KW
312.5L/hr
QH-3.0K-NaOCl
3000g/hr
8000±10%mg/L
25KW
375L/hr
QH-4.0K-NaOCl
4000g/hr
8000±10%mg/L
35KW
500L/hr
QH-5.0K-NaOCl
5000g/hr
8000±10%mg/L
35KW
625L/hr
QH-6.0K-NaOCl
6000g/hr
8000±10%mg/L
55KW
750L/hr
QH-8.0K-NaOCl
8000g/hr
8000±10%mg/L
90KW
1000L/hr
QH-10K-NaOCl
10000g/hr
8000±10%mg/L
90KW
1250L/hr
QH-12K-NaOCl
12000g/hr
8000±10%mg/L
90KW
1500L/hr
QH-15K-NaOCl
15000g/hr
8000±10%mg/L
125KW
1875L/hr
QH-18K-NaOCl
18000g/hr
8000±10%mg/L
140KW
2250L/hr
QH-20K-NaOCl
20000g/hr
8000±10%mg/L
195KW
2500L/hr
QH-25K-NaOCl
25000g/hr
8000±10%mg/L
195KW
3125L/hr
<template class="visibility">
PMMA transparent electrolytic cell (the cell is made of acrylic material)
Product Paramenters
Specification
Model
Available
Chlorine
Available Chlorine
Concentrationy
Rated
Power
Liquid
Capacity
QH-500-NaOCl
500g/hr
8000±10%mg/L
6KW
62.5L/hr
QH-600-NaOCl
600g/hr
8000±10%mg/L
6KW
75L/hr
QH-800-NaOCl
800g/hr
8000±10%mg/L
10KW
100L/hr
QH-1.0K-NaOCl
1000g/hr
8000±10%mg/L
10KW
125L/hr
QH-1.2K-NaOCl
1200g/hr
8000±10%mg/L
10KW
150L/hr
QH-1.5K-NaOCl
1500g/hr
8000±10%mg/L
15KW
187.5L/hr
QH-1.8K-NaOCl
1800g/hr
8000±10%mg/L
15KW
225L/hr
QH-2.0K-NaOCl
2000g/hr
8000±10%mg/L
15KW
250L/hr
QH-2.5K-NaOCl
2500g/hr
8000±10%mg/L
25KW
312.5L/hr
QH-3.0K-NaOCl
3000g/hr
8000±10%mg/L
25KW
375L/hr
QH-4.0K-NaOCl
4000g/hr
8000±10%mg/L
35KW
500L/hr
QH-5.0K-NaOCl
5000g/hr
8000±10%mg/L
35KW
625L/hr
QH-6.0K-NaOCl
6000g/hr
8000±10%mg/L
55KW
750L/hr
QH-8.0K-NaOCl
8000g/hr
8000±10%mg/L
90KW
1000L/hr
QH-10K-NaOCl
10000g/hr
8000±10%mg/L
90KW
1250L/hr
QH-12K-NaOCl
12000g/hr
8000±10%mg/L
90KW
1500L/hr
QH-15K-NaOCl
15000g/hr
8000±10%mg/L
125KW
1875L/hr
QH-18K-NaOCl
18000g/hr
8000±10%mg/L
140KW
2250L/hr
QH-20K-NaOCl
20000g/hr
8000±10%mg/L
195KW
2500L/hr
QH-25K-NaOCl
25000g/hr
8000±10%mg/L
195KW
3125L/hr
</template>
Main Features of Split type sodium hypochlorite generator
★The electrolytic cell, electrolytic power supply, control unit and other components of the sodium hypochlorite generator system are integrated into the integrated main frame, which reduces the install space, reduces the connection of circuits and pipelines.

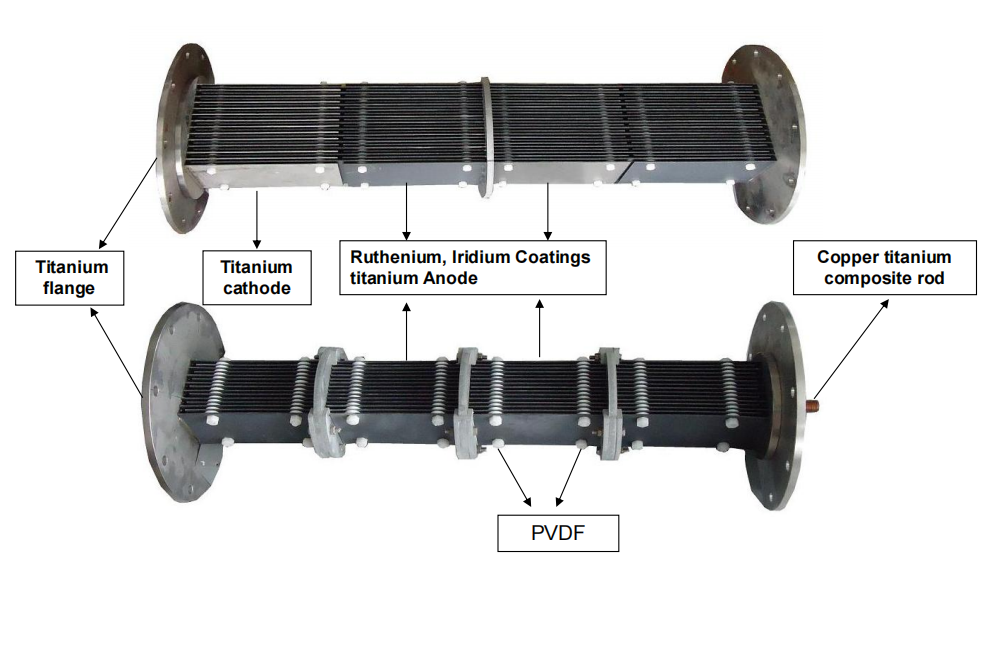

★Using the sixth-generation nanocrystalline electrode, the surface of the electrode is coated with ruthenium and iridium compounds, the cell pressure is low, the electrolysis efficiency is high, and the salt consumption is effectively reduced.
★The electrode plate spacing is reduced to 2mm, the chlorine evolution potential and the overall tank pressure are greatly reduced, saving electricity and energy.
★Electrolyzer is equipped with cooling device, which can effectively control the temperature of electrolyte, improve electrolysis efficiency and reduce power consumption.
★The electrolytic power supply is a high-frequency electronic switching power supply, and its AC-DC conversion efficiency can reach more than 92%, and the power consumption of the system is greatly reduced.
<template class="visibility">
Main Features of Split type sodium hypochlorite generator
★The electrolytic cell, electrolytic power supply, control unit and other components of the sodium hypochlorite generator system are integrated into the integrated main frame, which reduces the install space, reduces the connection of circuits and pipelines.
★Using the sixth-generation nanocrystalline electrode, the surface of the electrode is coated with ruthenium and iridium compounds, the cell pressure is low, the electrolysis efficiency is high, and the salt consumption is effectively reduced.
★The electrode plate spacing is reduced to 2mm, the chlorine evolution potential and the overall tank pressure are greatly reduced, saving electricity and energy.
★Electrolyzer is equipped with cooling device, which can effectively control the temperature of electrolyte, improve electrolysis efficiency and reduce power consumption.
★The electrolytic power supply is a high-frequency electronic switching power supply, and its AC-DC conversion efficiency can reach more than 92%, and the power consumption of the system is greatly reduced.
</template>
Application range of sodium chlorate generator
Domestic water:
Conventional and deep treatment of tap water and deep well water, and intermediate water treatment
Healthcare Industry:
◆ Disinfection, sterilization, deodorization and antiseptic treatment of medical, sanitary and clinical instruments
◆ Preparation of various oral disinfectant, deodorant and wound cleaning fluid
